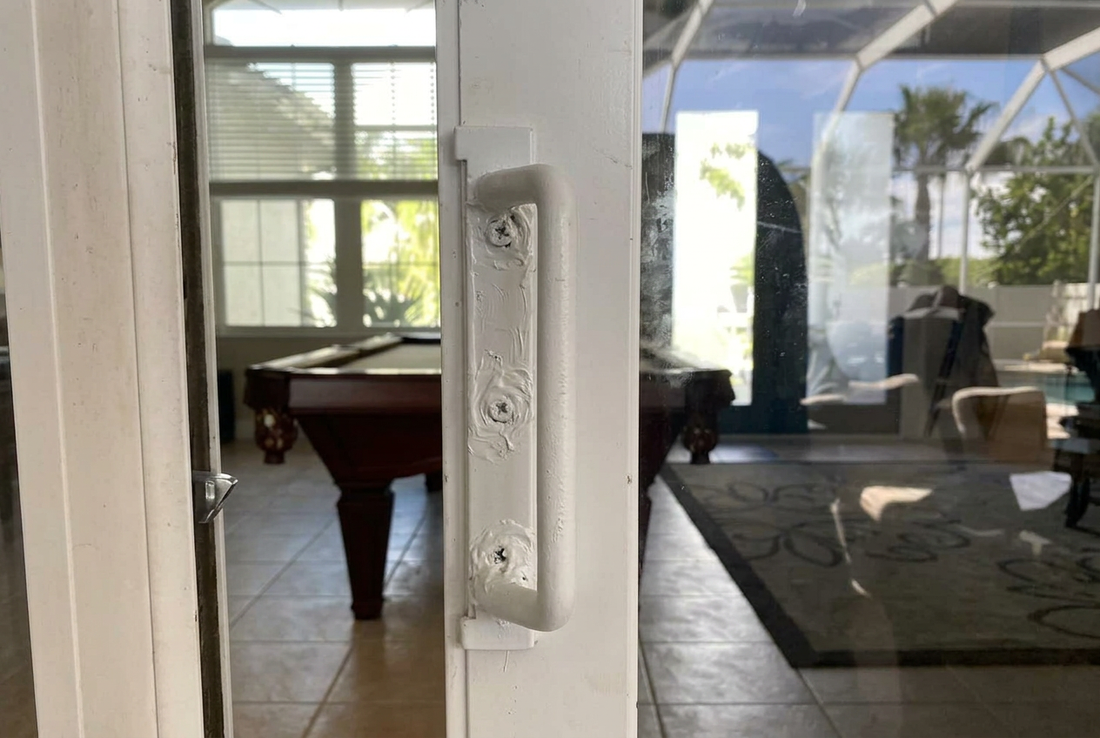

Painted-over screws can turn a simple sliding glass door handle replacement into a nerve test. The screw heads look smooth, the bit won’t bite, and it starts to feel like one wrong move could crack trim, scratch glass, or strip the fasteners for good.
The fix is usually not brute force. It’s prep. Most sliding door handle sets use through-bolts, hidden screw covers, and a thin paint “seal” that locks everything together. Break that seal cleanly, use the right driver, and the handle usually comes off without drama.
This guide walks through what to check before you buy a replacement, how to open painted screw heads safely, and a step-by-step removal and install process that keeps the door, frame, and glass protected.
Check your door and handle first, so you buy the right replacement
Before you touch a tool, take 2 minutes to identify what you’re working on. Sliding glass door handles often look similar but mount differently. If you buy the wrong type, you’ll end up with misaligned holes, a lock that won’t engage, or a handle that binds when tightened.
Start with three quick checks:
Inside and outside handle style: Many doors have a matching interior and exterior pull, held together by two long screws (through-bolts). Others use a surface-mount pull on one side with shorter screws.
Thumb latch presence: If you have a thumb turn or lever that throws the latch, you likely have a mortise-style lock body inside the door edge. That’s the most common setup.
Does the lock still work: Lock function tells you what should be reused. Many replacements reuse the existing mortise lock and just replace the handle set. Some kits include a new mortise, but the door must match the lock shape and screw pattern.
Also check for screw covers. Many sliding door handles hide the mounting screws behind snap-on caps or a sliding trim piece. Paint can bridge that seam and make the cover feel “glued.”
A few habits that prevent headaches later:
- Take photos of both sides before removal (straight-on and from the top).
- Open and close the latch once and note how it feels.
- Put a small tray or cup nearby for screws, caps, and the spindle.
If you’re shopping for a retrofit style grip that installs over many existing plates, compare your door plate size and layout first. Browsing a dedicated set of options like Luuv replacement handles for sliding doors can help you narrow the finish and orientation, but your measurements still come first.
Simple measurements that prevent returns (hole spacing, door thickness, key cylinder)
Most returns happen for one reason: the handle doesn’t match the door’s hole pattern or thickness. Don’t guess. Measure once, write it down, and keep it where you can see it.
Here are the measurements that matter most and how to take them:
Mounting hole spacing (center-to-center): This is the big one. Measure from the center of the top screw hole to the center of the bottom screw hole. If the screws are still installed and painted over, measure from the center of one screw head to the center of the other. A small ruler works, but a tape measure is fine if you read carefully.
Door thickness: Open the door slightly and measure the thickness at the edge with a tape measure. This affects screw length and spindle fit.
Key cylinder: Look at the exterior handle. If there’s a keyed lock cylinder, you need a handle set that accepts that cylinder style and tailpiece. If there is no keyhole, don’t buy a keyed set unless you plan to add parts.
Handle height and plate shape (only if needed): If your handle has an unusually tall backplate or a unique contour, take a quick height measurement. This helps if you’re trying to cover old paint lines or screw marks.
A simple trick that saves time mid-project: write the hole spacing and door thickness on a strip of painter’s tape and stick it to the inside of the door frame. It keeps your notes visible without hunting for your phone.
Tools that remove painted-over screws without stripping them
Painted screws fail for two reasons: the driver bit can’t seat fully, and people jump to a drill too early. The goal is clean access, strong grip, and controlled force.
Here’s the tool list that earns its place on the floor next to you:
Utility knife (sharp blade): Scores paint cleanly around screw heads and trim seams.
Pick, awl, or dental tool: Digs paint out of the screw recess so the bit seats all the way.
Small flat screwdriver: Helps lift screw covers and tease paint out of corners.
Correct driver bits: Usually Phillips, sometimes square (Robertson) on older or upgraded hardware. Use a bit that fills the recess. A “close enough” bit strips heads fast.
Manual hand-impact driver (optional but helpful): Converts a hammer tap into a controlled turning force. It’s the safest tool for a stuck screw head.
Penetrating oil: Helps if the threads are corroded, or the screw passes through metal and binds. Use a tiny amount.
Hair dryer or heat gun on low: Softens paint so it releases. Keep heat moving and gentle.
Painter’s tape: Shields nearby vinyl, aluminum, and glass from slips and chips.
Safety glasses: Paint chips and metal flakes travel farther than you’d expect.
Shop vacuum: Removes grit that can scratch glass and keeps paint chips out of the track.
What to avoid early on:
- A power driver as the first attempt. Use it only after the screw breaks free.
- An oversized bit “for more bite.” It cams out and rounds the head.
- Excess heat near vinyl frames or glazing. If it’s too hot to touch, it’s too hot.
The safest way to open the paint seal around a screw head
Paint behaves like a thin adhesive film. If you try to turn the screw through that film, the bit rides up and slips. So your first job is to cut the film, not fight it.
- Tape off the area: Put painter’s tape around the screw head and along nearby glass edges or finished surfaces. This gives you a margin if the knife slips.
- Score a clean circle: With a sharp utility knife, cut a shallow circle around the screw head. Use light pressure and several passes, not one heavy cut.
- Clear the recess: Use a pick or awl to remove paint inside the screw recess. Keep going until you see clean metal edges and the bit drops in fully.
- Vacuum chips: A quick vacuum keeps paint grit from scratching the door or getting dragged under your hand.
If the screw is under a trim cap, score the cap seam the same way. Paint often bridges that seam and makes the cap snap or crack when forced.
How to get stubborn screws moving (grip, tapping, heat, and penetrant)
Once the screw head is clean, use a simple escalation order. Each step adds force without increasing risk too fast.
Step 1: Seat the correct bit and turn by hand
Use a hand screwdriver first. Press straight in with firm pressure and turn slowly. This keeps the bit engaged and reduces cam-out.
Step 2: Shock the threads
If it won’t budge, tap the screwdriver handle with your palm or a light hammer. You’re not trying to smash it. You’re sending a small shock to break the bond.
Step 3: Use a hand-impact driver
If you have one, this is where it shines. Hold it straight, push it firmly into the screw, and tap with a hammer. It turns while staying seated, which helps prevent stripping.
Step 4: Add penetrant (sparingly)
If you can access the screw shank or it passes through metal, add a small drop of penetrating oil. Wait 10 to 15 minutes. Wipe excess so it doesn’t run onto vinyl.
Step 5: Gentle heat to soften paint
Warm the screw area with a hair dryer or low heat gun setting. Keep it moving and avoid concentrating heat near the glass edge. Stop if the surface gets too hot to touch comfortably.
Skip harsh solvents on vinyl doors. Acetone and similar chemicals can soften, stain, or haze some finishes.
Step-by-step handle removal and replacement, with safety checks
Work with the door closed. A closed door is stable, and the latch keeps the panel from shifting while you remove through-bolts.
Before you start, do two safety moves:
Lock the door (if the lock still works). This keeps the panel from rolling when you’re pushing on screws.
Support the exterior handle. Most sets are held together by long screws. Once the interior screws back out, the outside pull can fall, scratch the frame, or chip tile.
Now follow this sequence:
- Find and remove trim caps on the interior handle. If paint covers the seam, score it with a knife first.
- Open paint around the screw heads using the scoring and picking method above.
- Break the screws loose by hand. Back each screw out a few turns, then switch to the other screw. Keep tension even so the handle doesn’t bind.
- Hold the exterior pull as the screws come free. Set it down gently once separated.
- Note the spindle and latch parts. Many handles use a square spindle that passes through the lock. Pay attention to its length and orientation.
- Remove the interior handle and any plastic shims or spacers.
- Inspect the mortise latch on the door edge. If it’s worn, sticky, or loose, deal with that before installing the new handle.
When you install the replacement handle:
- Dry-fit first. Align both sides, confirm the spindle engages, and check that the thumb latch moves the mortise smoothly.
- Start screws by hand. Turn each screw a few threads before tightening. This prevents cross-threading and keeps the handle aligned.
- Tighten evenly. Alternate between screws until snug. Don’t crush the door material or bow the backplate.
- Test before final snugging. Close the door, check latch engagement, then lock and unlock from both sides.
If you’re choosing a retrofit style pull intended to improve grip without replacing the full lockset, follow the maker’s instructions carefully and confirm your door plate size. For example, the White Luuv Handle product page shows the intended use and basic install approach, which can help you compare your current setup.
Remove the old handle without cracking trim or losing parts
Paint doesn’t just cover screws. It often glues the handle plate to the door.
Finding screw covers: Look for small plastic caps near the screw line, often top and bottom on the interior side. If you don’t see them, run your fingernail along the plate. You may feel a slight edge where a cover snaps in.
If the cover won’t lift: Score the seam with a knife, then use a small flat screwdriver to lift gently. Pry against the backplate, not the door surface.
If the handle is stuck to paint: Score the outer edge of the backplate where it meets the door. Then wiggle the handle slightly up and down, not side to side.
A thin putty knife can help, but protect the finish. Wrap painter’s tape around the blade edge so it can slide without leaving a scar. Never pry against the glass or glazing bead.
As parts come off, watch for:
- A square spindle that falls free.
- A spring-loaded thumb latch piece.
- Thin plastic shims that may be stuck to the old backplate.
Keep everything in your parts tray until the new handle is installed and tested.
Install the new handle and confirm the latch lines up
Most installation issues show up in the first test close. The handle may feel fine in your hand, but the latch may not catch if alignment is off by even a little.
Dry-fit check: Hold both halves in place without screws and move the thumb latch. It should retract the mortise smoothly. If it feels gritty, clean the mortise area first.
Start both screws loosely: Turn each screw two to three turns. This lets you adjust the handle position before it locks in.
Keep the handle level: A handle tightened slightly crooked can pull the spindle off-center. That creates drag and can make the latch feel stiff.
Don’t overtighten: Snug is enough. Over-tightening can crush vinyl, warp a thin backplate, or bind the lock.
Testing sequence that catches problems early:
- With the door open, operate the latch 10 times. It should return fully each time.
- Close the door gently and confirm the latch engages without slamming.
- Lock and unlock from the inside, then from the outside (if keyed).
- Slide the door open and closed to confirm nothing rubs.
If the latch won’t engage, try small adjustments:
- Loosen both screws one turn, shift the handle slightly, then re-tighten evenly.
- Check the mortise latch screws on the door edge. A loose mortise can sit low and miss the strike.
- Inspect the strike plate on the frame. Sometimes the handle wasn’t the problem, the strike is misaligned.
Conclusion
Painted-over screws don’t require hero strength, they require a clean start. Break the paint seal, clear the screw recess so the bit seats fully, then use slow, controlled force to back the screws out. Install the new handle with even tightening and a full function test before you call it done.
If a screw starts to strip, stop and step up your method (hand-impact driver, better bit fit, more paint cleanup) instead of forcing it. A calm reset saves hours.
A good result looks like this: solid grip, smooth latch action, lock works from both sides, and the door surfaces look untouched.
